Needle Valve Bubble Rate Planted Tank Uk

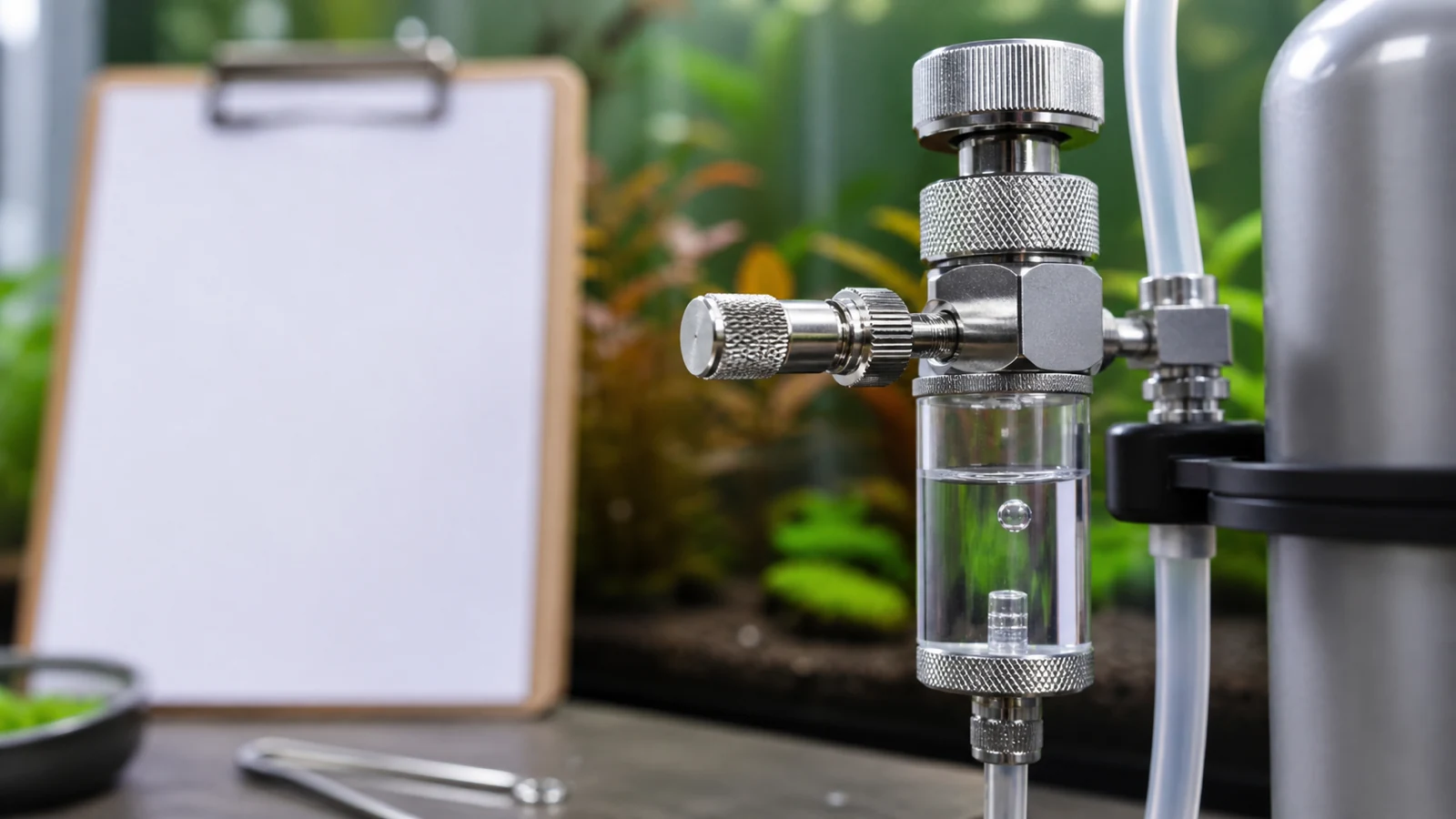

Direct answer: set the regulator working pressure first, then open the needle valve in tiny increments, count bubbles in the bubble counter, and wait for the drop checker to catch up before changing it again. Bubble rate is a starting signal, not a livestock-safe guarantee.

Most problems come from impatience: turning the valve, seeing no instant colour change, turning again, then discovering two hours later that the tank is over-gassed.

The order matters

1. Connect the cylinder and regulator securely.
2. Leak-test the cylinder joint and tubing path.
3. Set a modest working pressure according to the regulator instructions.
4. Fill the bubble counter if your model requires water.
5. Open the needle valve slowly until bubbles are countable.
6. Wait before adjusting again.

CO2 Supermarket's UK setup notes describe setting the pressure adjuster first and then using the needle valve for bubble rate, with about 1 bubble per second for a 150L tank as an example starting heuristic: CO2 Supermarket's regulator setup notes.

Use bubble rate as a dial, not a diagnosis

Aqua Essentials suggests starting around 1-2 bubbles per second and then adjusting over 24-48 hours until the drop checker is green: Aqua Essentials on bubble-rate tuning.

The key phrase is "starting". Two tanks with the same litres can need different CO2 because diffuser efficiency, surface agitation, plant mass and flow are different.

Checklist for a stable setting

• Write down the working pressure and bubble rate after each change.
• Make one adjustment per observation window.
• Use a drop checker, but remember it lags.
• Watch fish and shrimp, especially near lights-on and peak CO2.
• Check the valve has not been nudged during maintenance.
• Recheck after changing diffuser, tubing, cylinder or light intensity.

Common failure modes

Hunting the valve: constant tiny turns make the system impossible to read. Ignoring leaks: a leak can make you open the valve further than needed. Chasing pearling: visible pearling is not the same as safe, balanced CO2.

The 2Hr Aquarist's CO2 setup primer usefully separates the control roles: regulator, solenoid, needle valve and bubble counter each do different jobs: 2Hr Aquarist's CO2 system setup primer.

Pause immediately if livestock reacts badly

If fish gasp, shrimp stop grazing, or the drop checker turns yellow, reduce or stop CO2 and increase aeration. A perfect carpet is never worth stressing livestock.

FAQ

Can I copy someone else's bubble rate?

Use it only as a rough starting point. Your diffuser, flow and surface movement change the result.

Does a better needle valve remove the need for a drop checker?

No. A needle valve helps you adjust flow; the drop checker and livestock tell you how the tank is responding.
